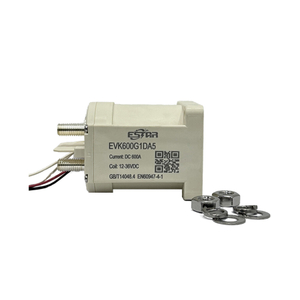

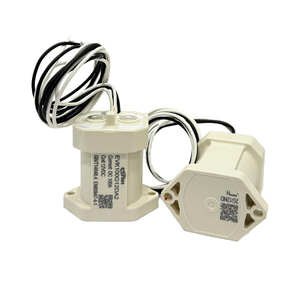

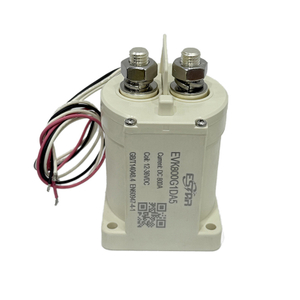

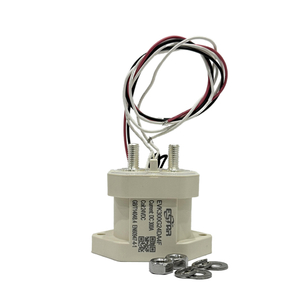

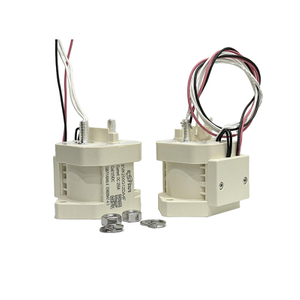

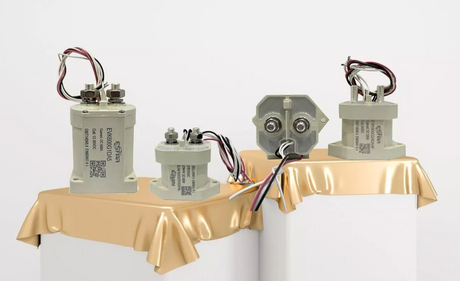

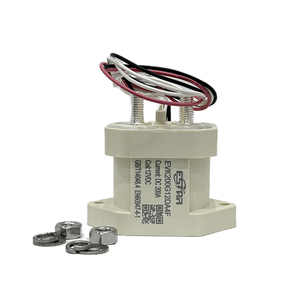

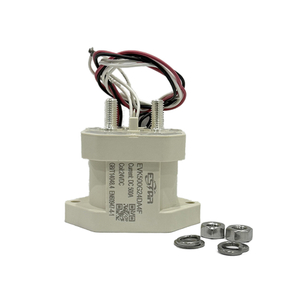

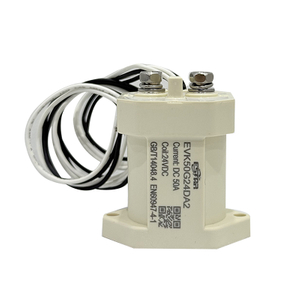

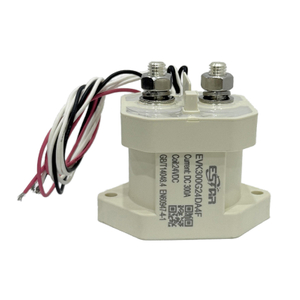

The Role and Design Considerations of DC Contactors in UPS Systems

When a power outage occurs or the mains supply fluctuates, a UPS (Uninterruptible Power Supply) acts as the “last line of defense” to keep critical equipment running. In modern UPS systems, increasingly using lithium batteries and high-efficiency inverters, DC contactors play a seemingly simple but vital role: managing the DC connection between batteries and inverters while ensuring safe switching, maintenance, and fault handling.

Here’s an easy-to-understand overview of what DC contactors do in UPS systems, how to choose the right one, and key factors that directly affect reliability and cost.

1. Five Essential Roles of DC Contactors in UPS

Battery Isolation – Cut off the DC circuit between the battery and the system during maintenance or emergency situations to protect both personnel and equipment.

Switching and Parallel Management – Safely connect or disconnect batteries to inverters, bypass circuits, or parallel battery strings.

Supporting Short-Circuit Protection – Work alongside fuses or breakers to ensure the system safely disconnects during extreme faults.

Arc Suppression – DC systems lack natural zero-crossing points, so the contactor’s arc-extinguishing design determines contact lifespan and operational safety.

Smart Monitoring (Increasingly Common) – Modern contactors can provide status feedback (coil current, contact temperature) for remote diagnostics and predictive maintenance.

2. Why It Matters Today

Lithium batteries are rapidly replacing lead-acid in UPS systems, offering smaller size and longer life but higher safety and isolation requirements.

UPS systems must comply with standards like UL 1778, which emphasizes battery isolation and emergency disconnect operability.

Battery safety standards (e.g., IEC requirements for fixed lithium battery installations) increasingly impact UPS design for electrical isolation and protection.

3. Practical Selection Checklist (8 Key Points)

System Voltage and Current – Confirm the maximum DC voltage, peak discharge current, and number of parallel battery strings.

DC Breaking Capacity – Verify actual DC breaking performance; DC switching is more demanding than AC.

Arc-Extinguishing Method – Magnetic blowout, vacuum, or gas arc suppression affects lifespan and size.

Coil Voltage and Control Compatibility – Common control voltages include 24V and 48V; ensure compatibility with the UPS control board.

Durability (Electrical and Mechanical Life) – Frequent UPS switching requires long electrical life.

Auxiliary Contacts and Feedback Signals – Closed/open alarms, contact temperature, and health monitoring.

Certification and Test Reports – Request UL/IEC compliance and DC breaking test reports.

Maintainability and Spare Parts – Are contacts field-replaceable? Are spare parts available quickly?

4. Common Mistakes to Avoid

Focusing only on rated current, ignoring breaking capacity – DC switching is harder than AC; neglecting this may cause contact welding or burnout.

Assuming “lower coil voltage is always better” – While low voltage saves energy, consider interference immunity and long-distance control stability.

Ignoring status feedback – A contactor without monitoring is a “black box”; when faults occur, maintenance costs rise.

5. Practical Design Tips

Use Contactor + Fuse Combination – Contactors handle routine switching and maintenance isolation, while fuses manage extreme short-circuit events; together, they provide reliable protection.

Consider Hybrid Solid-State + Mechanical Contactors – Solid-state switching handles frequent, arc-free operations, while mechanical contacts provide final isolation, extending life and reducing arc damage.

Include Status Signal Access – Auxiliary contacts and temperature sensors can be integrated into UPS monitoring for remote alerts and predictive maintenance.

6. Why Investing in High-Quality DC Contactors Brings ROI

Reduce Unplanned Downtime – Reliable isolation and switching prevent secondary faults and long outages.

Lower Maintenance Costs – Longer life and monitoring reduce replacements and on-site interventions.

Compliance and Insurance Advantages – Certified contactors simplify system approvals and support insurance claims.

7. Quick Takeaway

DC contactors in a UPS are not optional accessories—they determine whether battery isolation is safe, maintenance is convenient, and faults are properly handled. With the market moving toward lithium batteries and smart monitoring, selecting contactors with verified DC breaking capacity, status feedback, and proper certification brings tangible benefits to your UPS project.
