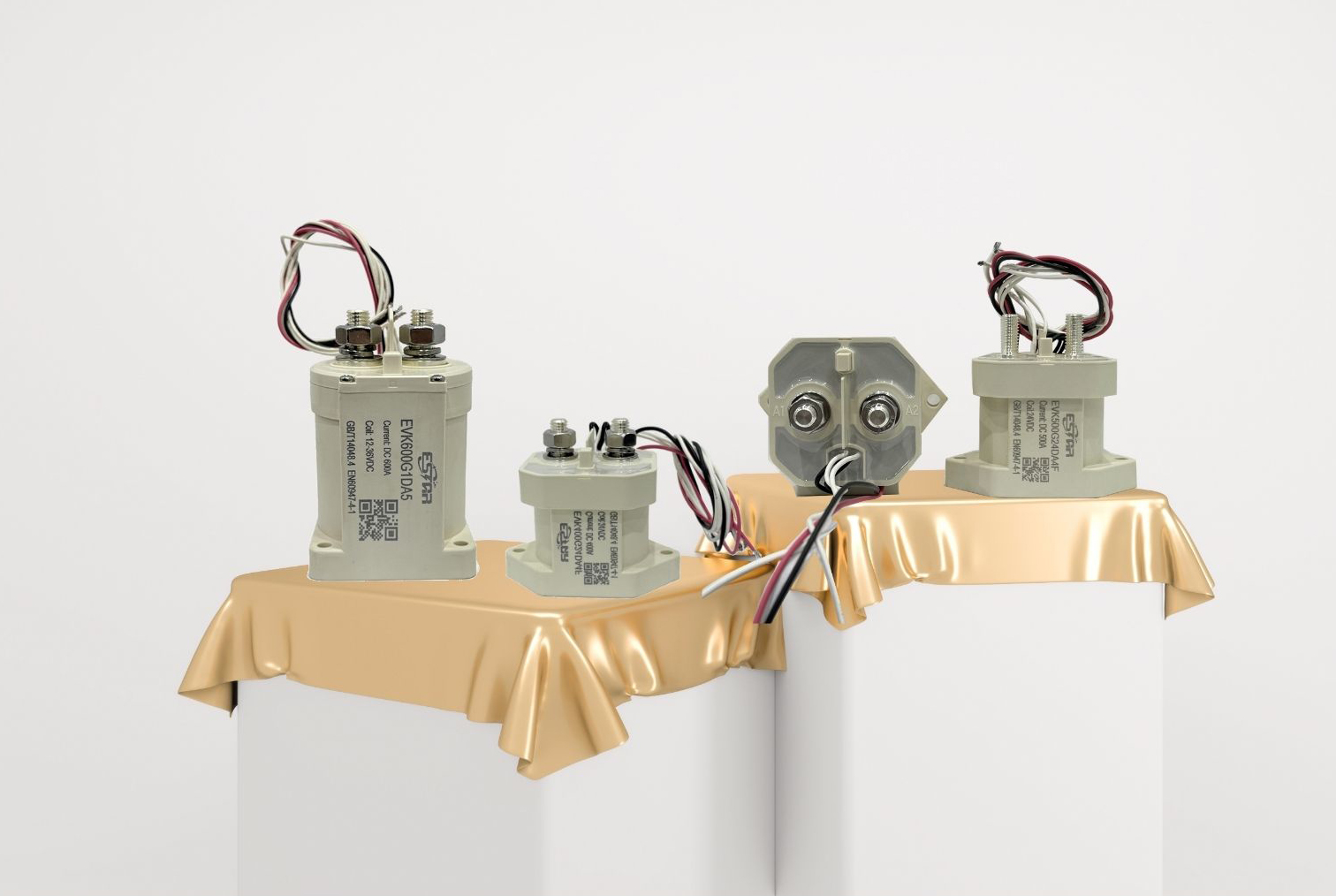

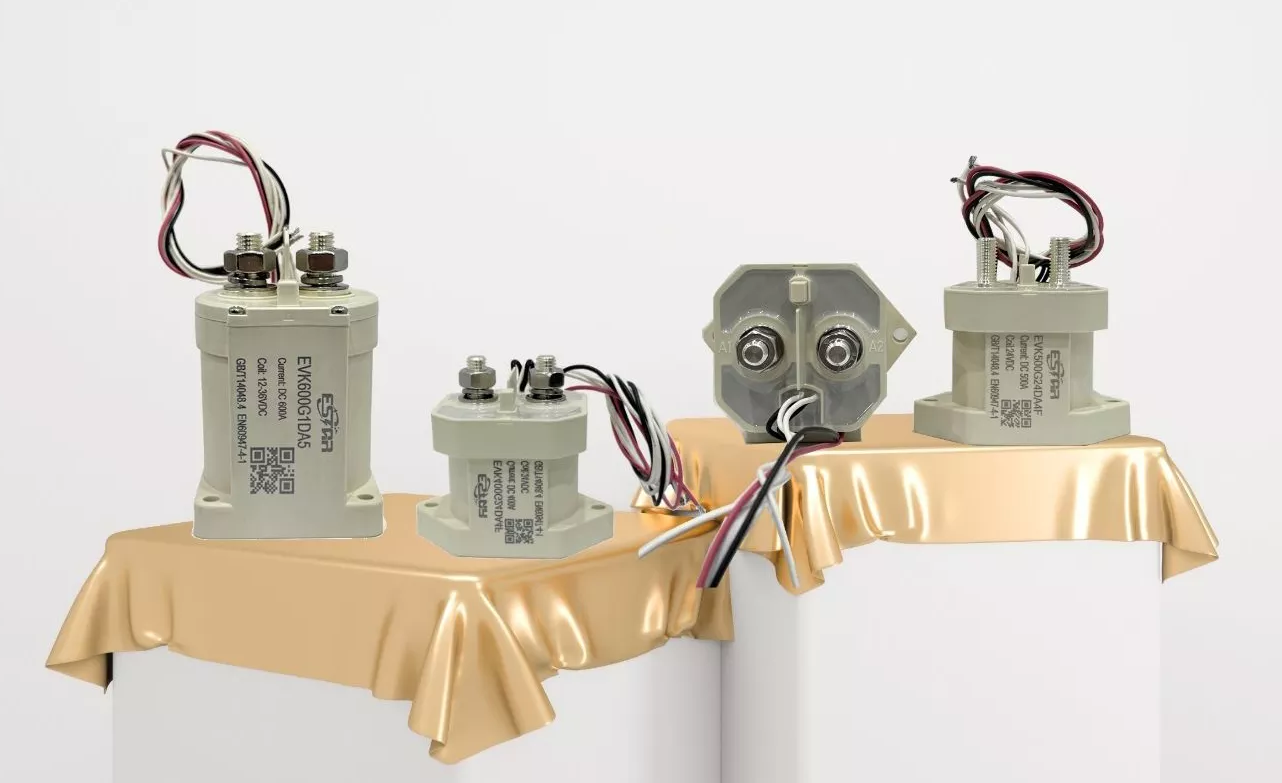

DC contactors are essential switching devices widely used in electric vehicles, energy storage systems, PV inverters, and fast charging infrastructure. Different applications require varying specifications in voltage, current, control, and environmental performance. Selecting the right contactor is critical for safety, efficiency, and system longevity.
1. Electrical Ratings
Rated Voltage
Ensure the contactor supports higher than the system’s max DC voltage:
60V–200VDC: Low-voltage systems (BMS, auxiliary)
400V–800VDC: Main EV circuits
1000V–1500VDC: ESS, PV, rail transit
Rated Current
Base the current rating on system needs with at least 20% safety margin:
EV drive system: 200–600A
Energy storage: Up to 800A+
PV inverters: 50–200A
2. Control and Switching Characteristics
Coil Voltage & Control Type
Common options: 12VDC, 24VDC, 48VDC. Choose latching or non-latching based on control preference and energy saving requirements.
Operate/Release Time
For fast response, high-performance contactors typically switch in 20–50ms.
3. Environmental & Mechanical Considerations
Working Temperature & Protection
For outdoor or onboard use, ensure the contactor supports -40°C to +85°C, with appropriate IP ratings and corrosion-resistant materials.
Installation & Size
Choose compact models for limited spaces and ensure compatibility with mounting types (flange, rail, or bolt).
4. Usage Frequency & Functionality
Switching Lifespan
High-frequency applications like fast chargers demand >10,000 load cycles and low contact wear.
Optional Features
For intelligent systems, consider:
u Auxiliary contacts
u Hall current/temperature sensing
u CAN/RS485 communication interface
5. Application-based Selection Guide
Application | Voltage Range | Current Range | Coil Voltage | Key Features |
EV Main Circuit | 400V–800V | 200–600A | 12/24VDC | Fast, anti-vibration, durable |
Energy Storage (ESS) | 800V–1500V | 250–800A+ | 24/48VDC | Long lifespan, remote control |
Fast Charging Module | 750V–1000V | 100–300A | 24VDC | High frequency, EMC optimized |
PV Inverter/String Box | 600V–1500V | 50–200A | 12/24VDC | High insulation, aux contacts |
Auxiliary DC Systems | 60V–150V | 10–50A | 12VDC | Compact, low load |
6. Conclusion
When selecting a DC contactor, consider:
l Electrical ratings (voltage, current)
l Control logic (coil voltage, switching time)
l Environmental & space constraints
l Smart features (feedback, monitoring)
For best results, choose models certified by UL, TUV, or CE and verify real-world performance before deployment.
