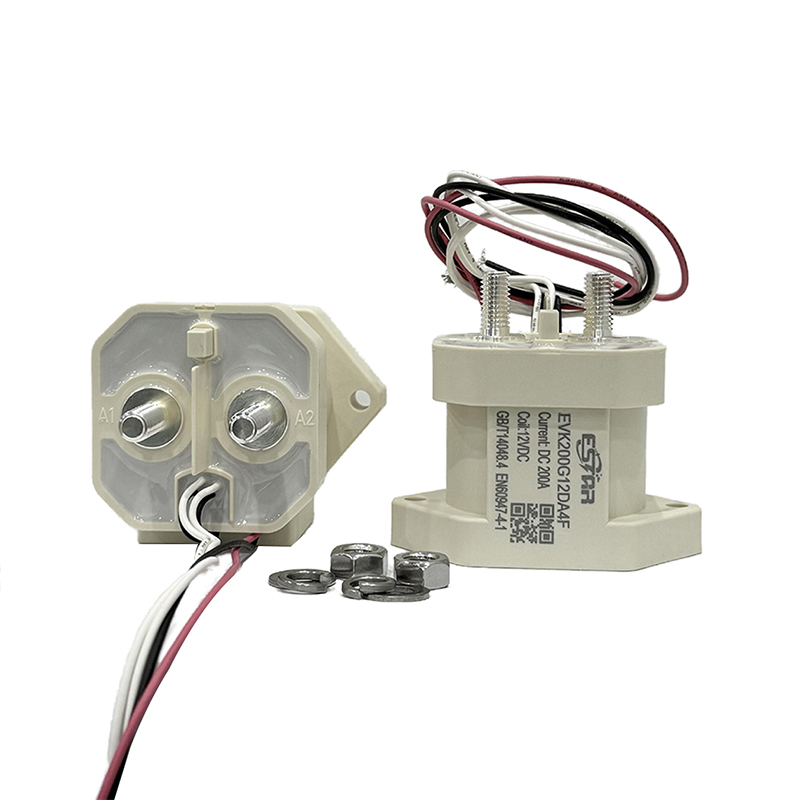

200A High Voltage DC Contactor Product Introduction
The 200A high voltage DC contactor is suitable for high power main circuit control in DC systems. The rated voltage range is DC 12V1500V, the control coil voltage can be selected as 12V, 24V or 48V, and the coil power is 6~6.5W. The product adopts a double break design, which can effectively improve the breaking capacity and ensure safe and reliable on-off operation under high voltage and high current environment.
The shell adopts resin and epoxy sealing technology, with good weather resistance, waterproof and dustproof capabilities (support IP67 customization). It is particularly suitable for new energy heavy-duty applications in harsh environments. Its auxiliary contacts are flexible in function and can be connected to status monitoring or interlocking circuits to improve the intelligence of the system.
Product features:
Double-break structure design: strong arc pulling, higher breaking efficiency
High impact current resistance: suitable for high-power load startup or fault disconnection scenarios
Wide environmental adaptability: excellent dustproof, moisture-proof and corrosion-resistant performance
Structural reinforcement design: meet the needs of long-term full-load operation
High-reliability auxiliary contacts: enhance system joint control and feedback capabilities
✅ Efficient coil, retentive power is only 6~6.5W
✅ The joint way of the coil is very convenient
✅ Dimension: 80.5×63.9×72.2mm
✅ Weight: 430g
✅ IP Grade: IP67
✅ Mechanical life: 2x105 cycles
✅ Approval: UL, CE, TÜV
Application scenarios
Typical application scenarios:
New energy bus/coach power battery system main control
High-voltage master control circuit breaker for industrial and commercial energy storage systems
DC control node for integrated photovoltaic storage and charging system
Modular power switching for fast charging stations
Grid peak-shaving energy storage circuit disconnection device
Applications include electric vehicles, fast charging piles, battery switching and backup, high voltage DC voltage switching control, circuit protection and safety control.
