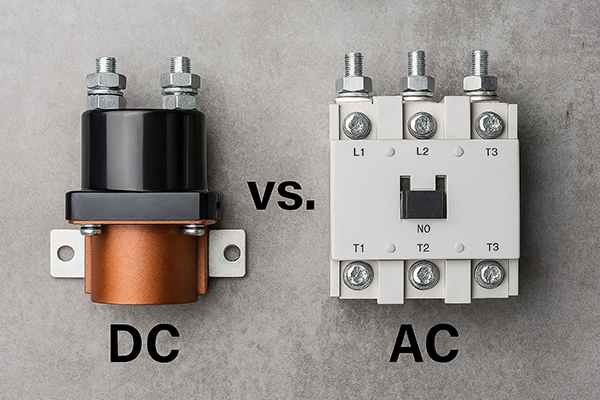

DC Contactors vs. AC Contactors: Key Differences and Application Insights

I. Introduction

In modern power electronics, industrial automation, and renewable energy systems, both AC (Alternating Current) and DC (Direct Current) circuits are common. Contactors—responsible for switching and isolating electrical circuits—must be designed according to the type of current they control. Using an AC contactor in a DC system (or vice versa) may lead to poor reliability, overheating, or even safety hazards.

This article aims to systematically compare DC and AC contactors, analyze their design and operational differences, and provide selection guidance for engineers and procurement professionals.

II. Structural and Design Differences

1. Magnetic Core and Coil Structure

AC Contactors:

Typically use laminated silicon steel sheets to reduce eddy current and hysteresis losses caused by alternating magnetic fields.

DC Contactors:

Since DC current does not alternate, there are no cyclic magnetic reversals. Hence, DC contactors often use solid or cast soft steel cores instead of laminated ones.

2. Coil Design (Excitation and Holding)

Resistance and Turns:

DC contactor coils have more turns and higher resistance to generate sufficient magnetic force at constant current while minimizing heat buildup.

Economizer Circuit:

Many DC contactors use a two-stage design—high current for pull-in and lower current for holding—to reduce power consumption and coil heating.

AC Inductive Effect:

AC contactor coils rely on inductive reactance to limit current. If used with DC, the lack of reactance causes excessive current that can burn the coil.

3. Arc Suppression Technology

AC Contactors:

AC current crosses zero twice per cycle, naturally helping extinguish arcs. These contactors typically use arc chutes or grids to aid arc dispersion.

DC Contactors:

DC current does not have a zero-crossing point, making arcs more difficult to extinguish. Therefore, DC contactors incorporate magnetic blowout structures, longer arc paths, or gas-filled chambers to improve breaking performance and lifespan.

4. Operation Frequency and Service Life

AC Contactors:

Usually operate hundreds of times per hour, limited by coil heating and mechanical wear.

DC Contactors:

Can support high switching frequencies (hundreds to over a thousand cycles per hour), depending on contact wear, heat management, and design optimization.

III. Electrical and Safety Performance Differences

1. Breaking Voltage Capability

An AC contactor’s DC breaking capacity is often much lower—sometimes only 10–15% of its AC rating. Therefore, AC contactors cannot be directly substituted in DC circuits unless heavily derated or modified with external arc suppression.

2. Contact Resistance and Heat Dissipation

In DC systems, contact resistance plays a critical role in minimizing conduction losses and temperature rise. High-quality DC contactors use optimized contact materials and pressure designs to ensure stable low resistance and long service life.

3. Current Polarity and Reverse Protection

DC circuits have defined polarity, so DC contactors must handle unidirectional current and protect against reverse voltage or backfeed conditions. Some include built-in anti-reverse or surge protection circuits.

4. Failure Mode and Safety Isolation

Mechanical DC contactors are often fail-safe open—when a failure occurs, the circuit tends to disconnect safely. This contrasts with certain solid-state or hybrid designs, which may fail shorted if not properly designed.

IV. Typical Applications and Key Considerations

In integrated systems, AC contactors may handle auxiliary loads or low-voltage control lines, while DC contactors are essential for the main high-voltage or high-current circuits in EV, ESS, and renewable applications.

V. Selection Recommendations

When choosing a contactor for your system, consider the following guidelines:

Match Voltage and Current Ratings with Safety Margin

Account for transient surges, short circuits, and overloads—not just nominal conditions.

Use Dedicated DC Designs

Ensure the selected contactor features magnetic blowout or arc suppression technology rather than repurposed AC designs.

Optimize for Low Contact Resistance and Thermal Control

A well-designed DC contactor maintains low power loss and manageable temperature rise even under continuous load.

Request Verified Life-Cycle Data

Ask suppliers for mechanical and electrical endurance test reports under real operating conditions.

Consider Smart Monitoring Options

Models with built-in sensors (for temperature, contact resistance, or coil current) and communication (CAN / Modbus) simplify predictive maintenance.

Verify Compliance and Certifications

For international projects, check CE, UL, or IEC conformity, and ensure proper isolation and dielectric strength.

Evaluate Supplier Reliability and Capacity

Production consistency, delivery speed, and after-sales support are critical for large-scale deployment.

VI. Conclusion

DC and AC contactors differ fundamentally in coil design, magnetic structure, arc suppression, and performance characteristics.

DC contactors require more advanced arc management and thermal design, especially for high-voltage energy storage and EV systems.

They are not interchangeable, except in limited low-power auxiliary circuits.
