Application and Challenges of DC Contactors in New Energy and Electric Vehicles

With the rapid development of new energy and electric vehicle markets, DC contactors have become indispensable core components in high-voltage DC systems. This article delves into the key application scenarios, technical challenges, and future development trends of DC contactors.

1. What is a DC Contactor?

A DC contactor is an electrical device specially designed to control the making and breaking of high-voltage DC circuits. It features the ability to carry large currents, withstand high voltages, and frequently switch on and off. Due to the absence of a natural current zero-crossing in DC systems, breaking the circuit is more challenging, so DC contactors must be designed with greater rigor and reliability.

2. Core Application Scenarios

Typical applications of DC contactors in new energy and electric vehicle systems include:

a. Electric Vehicle Main Circuit

Used to connect/disconnect the battery pack and the drive system, ensuring safe power cut-off during vehicle start-up or fault conditions.

b. Battery Management System (BMS)

Controls the current path during charging and discharging of battery packs to ensure safety and energy management.

c. DC Fast Charging Stations

Controls current flow during high-power DC charging, providing isolation and protection between users and equipment.

d. Energy Storage Systems (ESS)

Used in wind and photovoltaic systems to switch circuits between battery packs, inverters, and loads.

3. Major Technical Challenges

Despite widespread use, DC contactors still face several technical difficulties under high-voltage DC conditions:

a. Arc Extinguishing Difficulty

DC current lacks a natural zero-crossing, making arc extinction difficult. The arc duration is long, easily causing contact welding and erosion.

Solution: Optimize magnetic blowout structures and adopt epoxy resin sealed arc chambers to effectively control arc propagation paths and improve reliability.

b. High-Voltage, High-Current Thermal Management

EV systems often operate at 800V or higher platforms, with currents reaching hundreds of amperes, causing serious heating in contactors.

Countermeasure: Use highly thermally conductive materials and low-power coils, combined with magnetic holding technology to reduce heat generation.

c. High Reliability and Long Service Life

Systems require DC contactors to remain stable under high-frequency operations, often demanding electrical lifetimes greater than 10,000 cycles.

d. Trend Toward Intelligence

Customers increasingly require contactors with status feedback, temperature monitoring, and remote control functions.

Technical Direction: Integrate sensor modules supporting CAN, Modbus, and other communication protocols to enhance system intelligence.

e. Space and Weight Constraints

Especially in passenger vehicles and heavy-duty electric trucks, device space is limited, requiring compact size and lightweight designs.

4. Technological Development Trends

To meet complex demands, DC contactors are evolving in the following directions:

✅ Epoxy Resin Sealing Structure: Replaces traditional ceramic sealing, offering higher insulation strength, more compact structure, and better cost-effectiveness.

✅ Advanced Arc Extinguishing Designs: Uses combined magnetic blow and air blow mechanisms to enhance breaking capacity.

✅ High-Performance Contact Materials: Such as silver tungsten alloys to improve conductivity and weld resistance.

✅ Magnetic Holding and Low Power Designs: Reduce energy consumption and extend system runtime.

✅ Intelligent Modularization: Enables status feedback, fault diagnosis, and remote operation and maintenance.

✅ International Standard Certifications: Compliance with UL, IEC, GB/T, etc., facilitating export and global deployment.

5. Conclusion and Outlook

DC contactors are not only the “gatekeepers” of new energy systems but also core components ensuring the safe operation of electric vehicles. As electrification trends deepen, the technical requirements and application scenarios for DC contactors will become increasingly diverse.

In the future, DC contactors will continue to innovate in high voltage and power capacity, miniaturization, and intelligence, becoming indispensable key players in green energy systems.

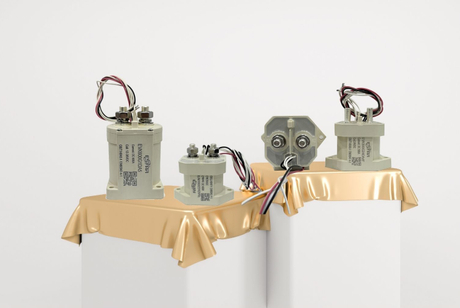

Estar has launched a series of high-voltage DC contactors suitable for 800V platforms, featuring epoxy resin sealed structures, high insulation, and high reliability. These products are widely applied in heavy-duty electric trucks, energy storage, battery packs, and fast charging stations. For more product details, please visit our DC Contactor Product Page.
