The Key Role of High-Voltage DC Contactors in the New Energy Sector

As the global energy structure accelerates toward a cleaner, low-carbon future, the new energy industry is experiencing rapid development. Whether in electric vehicles (EVs), solar power, wind energy, or energy storage systems, high-voltage direct current (HVDC) systems are gradually replacing traditional AC systems and becoming the core architecture of modern energy applications. In this transformation, high-voltage DC contactors play an irreplaceable role, acting as the "gatekeepers" that ensure safe, efficient, and stable system operation.

What is a High-Voltage DC Contactor?

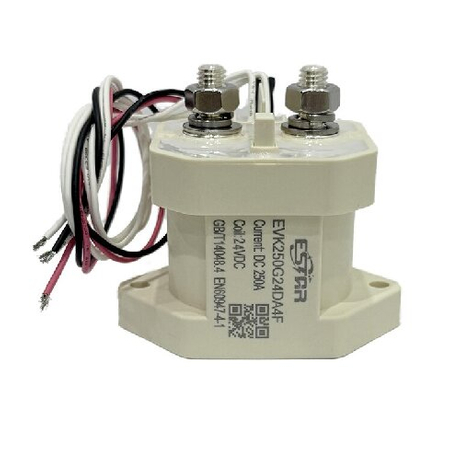

A high-voltage DC contactor is an electrical switching device designed to reliably make or break DC circuits under high voltage and high current conditions. Unlike AC contactors, DC arcs are difficult to extinguish naturally, which places higher demands on the contactor’s arc suppression, insulation performance, and durability.

Application Scenarios in the New Energy Sector

Electric Vehicles and Charging Infrastructure

In EVs and their charging stations, high-voltage DC contactors are used for circuit control between battery packs, drive systems, and DC charging ports. They must withstand voltages of several hundred to over a thousand volts and maintain stable performance during repeated charge-discharge cycles. Their fast-breaking capability is directly linked to vehicle safety.

Energy Storage Systems (ESS)

Battery packs in energy storage systems typically operate on high-voltage DC. Contactors must respond quickly and switch accurately while offering high electrical endurance to support frequent charge and discharge cycles, ensuring safe isolation during system anomalies.

Photovoltaic Systems

In solar DC combiner boxes, inverters, and battery storage units, high-voltage DC contactors are responsible for disconnecting critical circuits to prevent fault propagation and improve the overall safety and intelligence of the power generation system.

Wind Power and DC Microgrids

Modern wind power systems and DC microgrids also require high-performance switching devices to handle high voltages and large currents. High-voltage DC contactors serve as vital components in power conversion, energy routing, and system protection.

Key Advantages and Technical Challenges

Advantages:

High Breaking Capacity: Capable of interrupting thousands of amperes of DC current within milliseconds.

High Voltage Support: Compatible with systems ranging from 12V to 1500V or more.

Long Service Life and High Reliability: Ensures safe switching, protecting systems from overloads and short circuits, and supports the long operational lifespan required by new energy systems.

Multiple Coil Voltage Options: Supports 12V, 24V, and 48V coils to adapt to various system designs.

Improved Efficiency: Helps maximize energy efficiency by minimizing losses and optimizing power flow within the system.

Technical Challenges:

Difficult Arc Suppression: Requires advanced arc extinguishing technologies such as magnetic blowout, air blowout, vacuum, or solid-state methods.

Complex Thermal Management: High currents generate significant heat, requiring advanced materials and structural design.

EMI Suppression: Must balance fast switching speed with electromagnetic compatibility (EMC) performance.

Future Development Trends

Compact and Lightweight Design: Ongoing advancements are driving the development of smaller and lighter contactors, making them easier to integrate into space-constrained systems.

Advanced Materials and Design: Innovative materials and designs are improving the reliability and performance of high-voltage DC contactors.

Intelligent Function Integration: Real-time monitoring and control functions are being incorporated, enhancing adaptability in dynamic energy environments.

As technologies in electric vehicles, fast-charging networks, distributed energy, and DC grids continue to evolve, high-voltage DC contactors will trend toward higher voltages, smaller footprints, and greater intelligence and modularity. Especially in the realm of smart maintenance and remote monitoring, contactors with integrated diagnostics and communication capabilities are expected to lead the next generation of products.
