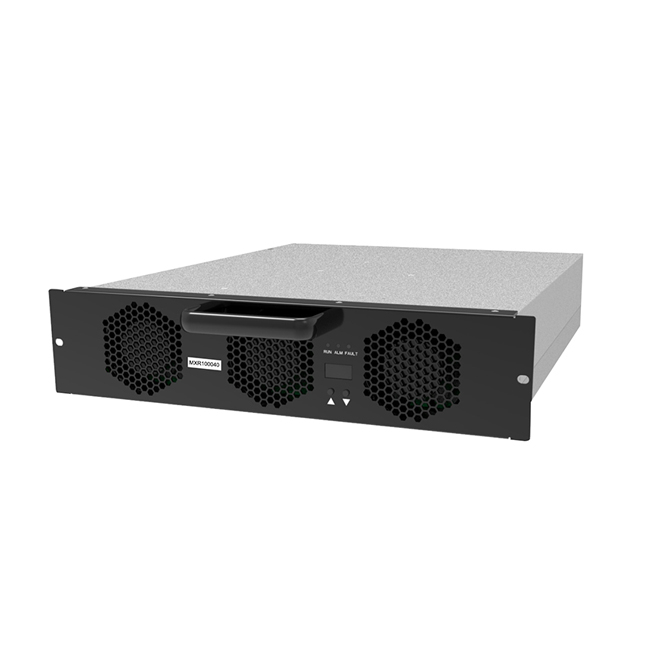

30kW EV Charging Module

High-performance 30kW EV charging module MXR100030;

Flexible, reliable, friendly charger module for EV charging station;

This EV DC charging power module is key power part of EV Fast Charger and converts AC to DC supply, which would be ready for CCS, CHAdeMO, GB/T system integration.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Product Name		EV charging module
Model		MXR100030
Dimension		85mmx360mmx459mm
Weight		＜20kg
Cooling Method		Fan Cooling
Protection Level		IP20
AC Input	Input Voltage	285-475Vac, 3 Phase+PE
	Input Current	＜80A
	Input Frequency	45Hz-65Hz
	ITHD	≤5%
	Input Power Factor	＞0.99
DC Output	Output Power	30kW
	Output Voltage	200-1000Vdc
	Current Range	0-133.3A
	Voltage Regulation Accuracy	≤±0.5%
	Stabilized Current Accuracy	≤±1%
	Standby Power Consumption	＜13W
	Efficiency	＞95.5%
Operating Environment	Operating Temperature	-40℃~75℃ (derating from 55℃)
	Storage Temperature	-40℃~75℃
	Reliable Humidity	≤95% RH, without condensation
	Altitude	≤2000m (derating can be used above 2000m)
Communication		CAN Bus
Indicator Light		Green: normal operation Yellow: protetion alarm Red: fault alarm LED digital tube
Parallel Quantity		≤60 pieces
Suitable for EV charger		GB/T , CCS, CHAdeMO
Certification		CE
